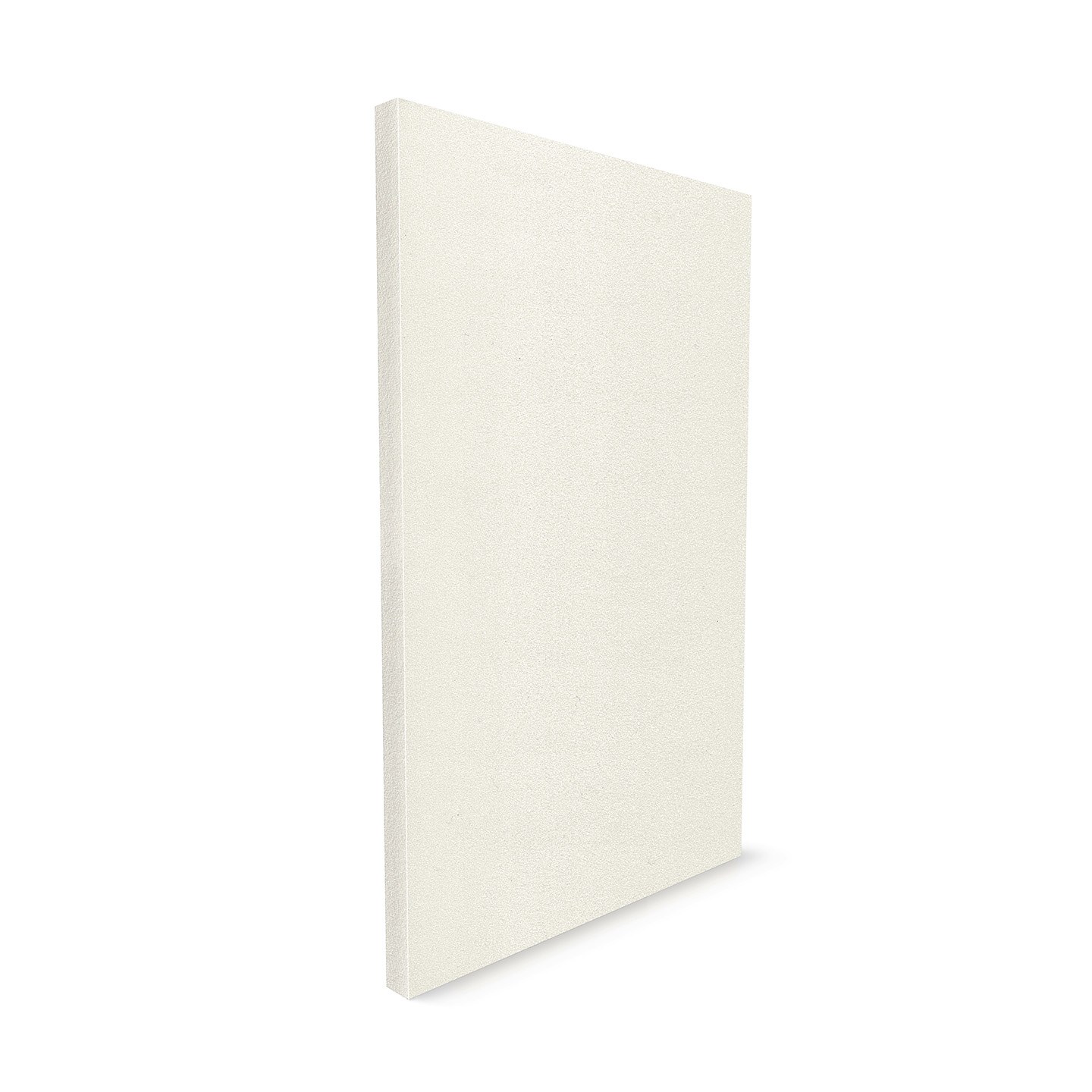

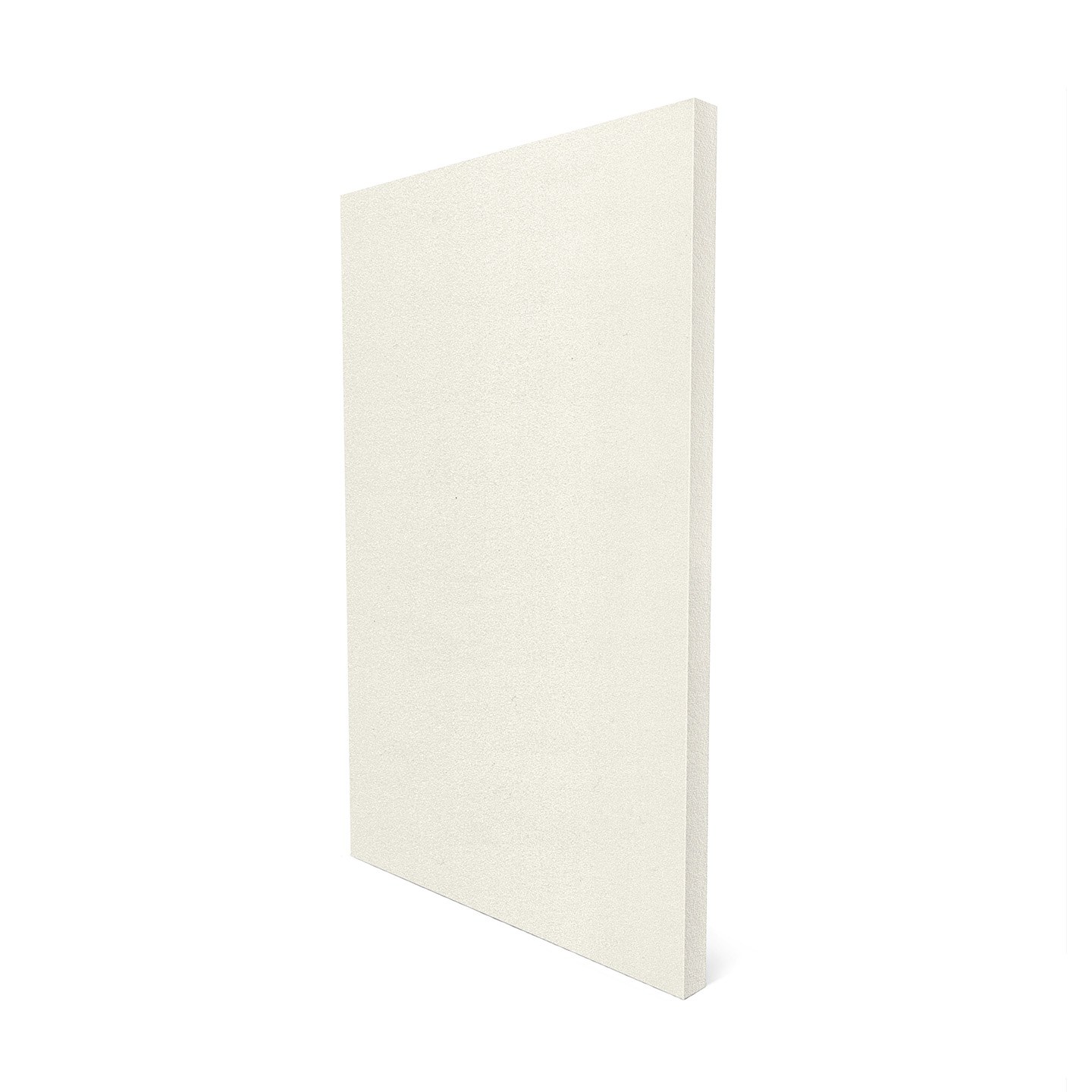

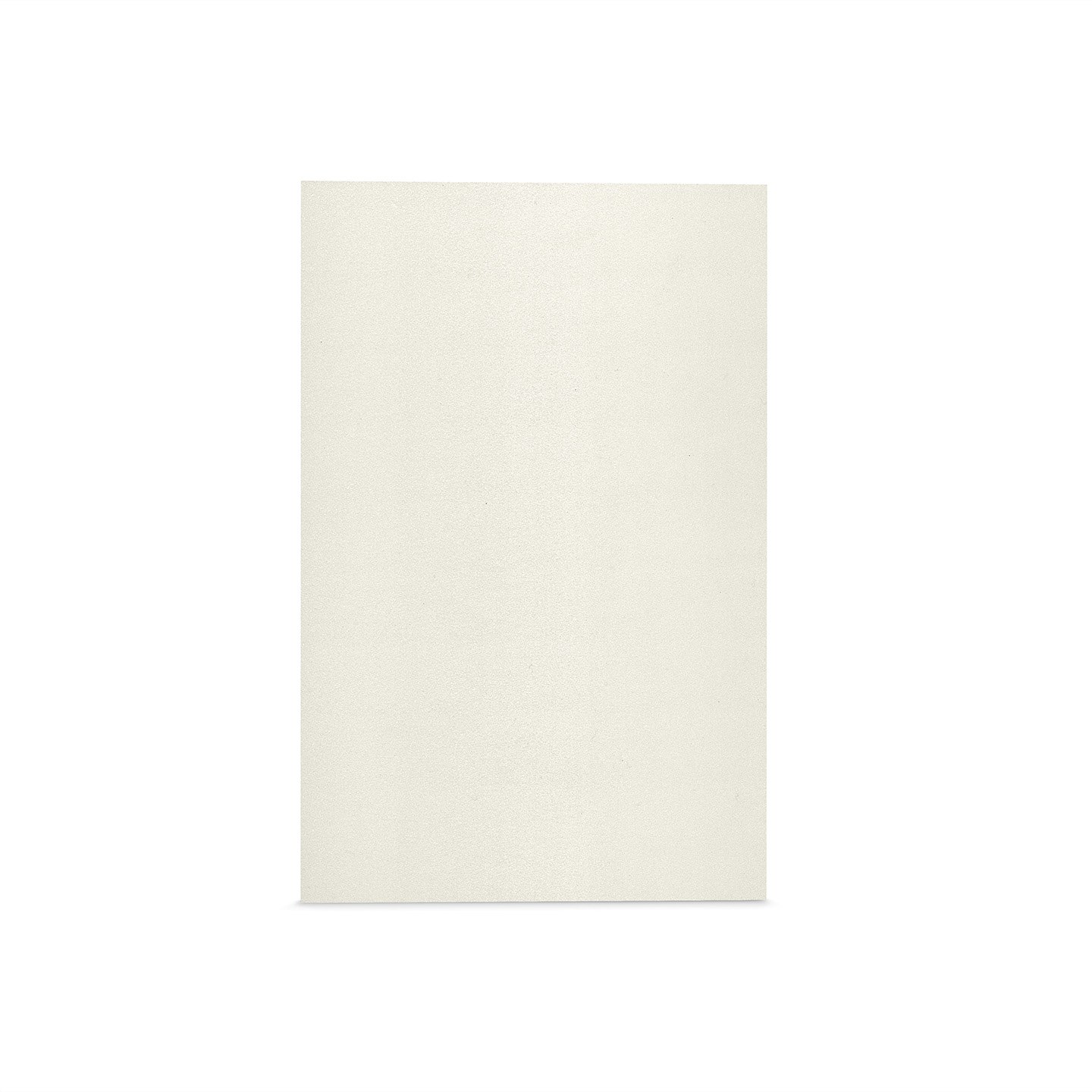

AIREX® TegraCore™

Lowest Density with Fire Performance

AIREX® TegraCore™
AIREX® TegraCore™
AIREX® TegraCore™

AIREX® TegraCore™

(50 kg/m3 | 3.3 lb/ft3)

  • - exceeds FAR 25.853 requirements
  • - easily passes OSU heat release test
  • - negligible moisture absorption
  • - exceptional impact resistance (non-brittle failure mode)
  • - very good chemical resistance against aerospace fluids
  • - easy CNC routing and thermoforming to complex shapes

Properties

  • Exceeds FAR 25.853 requirements: nearly zero smoke evolution, easily passes OSU heat release test
  • Processing temperature up to 180 °C (355 °F)
  • Very low moisture absorption
  • Excellent hot-wet performance
  • Exceptional impact resistance (non-brittle failure mode)
  • Very good chemical resistance against aerospace fluids
  • Dimensional stability in flight conditions
  • Easy CNC routing and thermoforming to complex shapes
  • Thermoplastic & thermoset composites compatible
  • Good sound and thermal insulation

Applications

  • Aerospace: interiors, luggage bins, side walls, seat covers, galleys, monuments, edge fillers, trolleys, insulating panels
  • Defence: naval joiner work, radomes, antennas, ballistic spacers
  • Marine: fire retardant interiors, cladding
  • Rail: interiors, side skirts, roof panels
  • Industrial: high temperature tooling, radomes, x-ray tables

Processing

  • Adhesive bonding
  • Thermoformable
  • Pre-preg processing (up to 180 °C, 355 °F)
  • Hot press molding
  • Thermoplastic processable
  • Automated tape laying (ATL/CTL)
